## FOR SALE ##

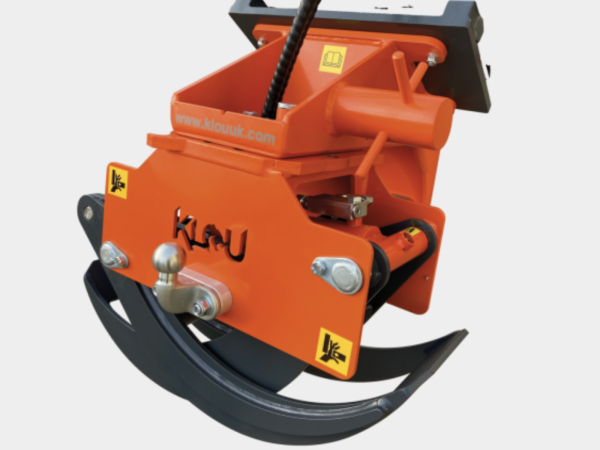

The robustly constructed, professional quality log grabs are simple but extremely strong. Engineered to to minimise the number of moving parts, these attachments are reliable and easy to use in a variety of jobs, including:
- Handling of large logs
- Loading of brush into woodchoppers
- Handling of posts, telegraph poles and stakes
The high gripping power coupled with the rigid mounting system prevents loads from swinging in transit; ensuring safety for the operator and accuracy when placing loads.
Compatible with the following machinery:
- Mini Skid-Steers
- Sit-in Skid Steers
- Tractor Front-end Loaders
- Telehandlers
- Mini Articulated Loaders
Product Features:
- The large-bore ram maximises crushing power. The pilot-operated check valve prevents the gran from opening without operator input, ensuring load retention
- The optional, front mounted tow ball permits easy movement of trailers etc without the need to remove the attachment
- The optional, side mounted capstan is a useful tie-point for ropes when dragging brush from hard to access areas
- The rear brace spreads forces evenly throughout the grab and carrier vehicle, helping to prevent the load from shifting
- Hydraulic pipes come wrapped to help protect them. Routed through the centre of the gran, further protecting them from damage and catching on branches.
- The immensely strong, rigid swivel system (never been known to break) prevents the load from swinging. Safer and easier to use in a confined space.
Product Specs:
- Height: 730mm
- Overall Width (open): 1370mm
- Overall Width (closed): 800mm
- Overall Length: 745mm
- Max open width: 1160mm
- Min closed diameter: 80mm
- MAx log diameter: 950mm
- Weight: 180KG
Hydraulic Service Requirements:
- Min/Max flow (litres/min): 20/75
- Min/Max pressure (bar): 150/250
- Case drain required?: No
- Pressure free return line required?: No |
